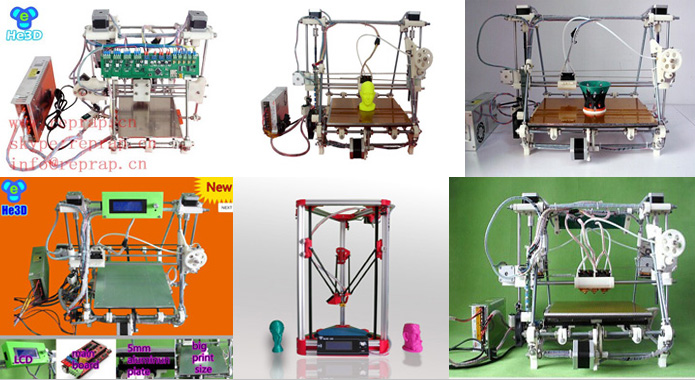

He3D-B300 3D PrinterWhole Machine Reprap

This product( He3D-B300) packed in wooden cases, there are a lot of plastic foam inside, can be shipped to all over the world, will not be damaged.

The size of Reprappro Mendel is increased

1, 5 mm thickness aluminum alloy table, more durable, heat up more faster

2, extensibility, scalable single nozzle design (standard for the print heads, already reserve the installation position)

3, FT card offline print function, this card is the same  memory card in the phone

4, install a Melzi Ardentissimo electronic circuit (for details, please refer to  electric and electronic parts catalog of our store)

5,  for 1.75 mm filament (PLA ABS)

6,more simplely and easily to assembly and  maintenance

7,linear bearings for X, Y, Z axis! Movement is more fluent, and more accurate.

8, printing precision is improved, the nozzle diameter is 0.40 mm(if you need 0.5mm,please left message for us)

9. replacing materials is more quickly (you can change different color materials, to achieve colorful model, for details, please refer to the beblow picture)

10,  printing size is increased, do not worry about a bigger model.

11, the power is 24 v, 400 w, support 110 v to 220 v

B300-(The whole machine)

Print size :300 x230x160mm machine,

Product appearance size:540X450X400mm

Packing size:620X500X470mm (Packed in wooden cases)

Operation systerm support: Linux  Mac  windows7 or later XP.

For XP system, the printing software is Pronterface. For other systerms, the printing software is Repetier Host.

He3D-B230 3D PrinterWhole Machine Reprap

This product( He3D-B230) packed in wooden cases, there are a lot of plastic foam inside, can be shipped to all over the world, will not be damaged.

The size of Reprappro Mendel is increased

1, 5 mm thickness aluminum alloy table, more durable, heat up more faster

2, extensibility, scalable single nozzle design (standard for the print heads, already reserve the installation position)

3, FT card offline print function, this card is the same  memory card in the phone

4, install a Melzi Ardentissimo electronic circuit (for details, please refer to  electric and electronic parts catalog of our store)

5,  for 1.75 mm filament (PLA ABS)

6,more simplely and easily to assembly and  maintenance

7,linear bearings for X, Y, Z axis! Movement is more fluent, and more accurate.

8, printing precision is improved, the nozzle diameter is 0.40 mm(if you need 0.5mm,please left message for us)

9. replacing materials is more quickly (you can change different color materials, to achieve colorful model, for details, please refer to the beblow picture)

10,  printing size is increased, do not worry about a bigger model.

11, the power is 24 v, 400 w, support 110 v to 220 v

B230- (The whole machine)

Print size :230 x230x160mm machine,

Product appearance size :470X450X400mm

Packing size: 620X500X470mm (Packed in wooden cases)

Operation systerm support: Linux  Mac  windows7 or later XP.

For XP system, the printing software is Pronterface. For other systerms, the printing software is Repetier Host.

He3D-A140 3D Printer kit Huxley ReprapProducts Description:

Attention: This product is kit package ,need assemble .Thanks .

3d printer Motherboard: melzi main chip 1284 p

3d printer stepper motor A4982 chip

Output power: 24 v input  AC110-220 - v

Print the most large area: 140 x140x110mm

Physical size: 260 x280x280mm

Printing material: ABS, PLA, 1.75 mm in diameter.

Building surface: PCB heating bed, aluminum mesa, in order to reduce the complexity of the assembly, to ensure parts deformation.

nozzle diameter:0.4mm (if you need 0.5mm, please left a message for us)

Precision standard: 0.1 mm

Resolution: 0.0125 mm

Construction speed: 1800 mm/min

Move speed: 1.2 mm/minute

Operation systerm support: Linux  Mac  windows7 or later   XP
Printing software: Repetier Host or Pronterface

Deposition rate: 33 cm/hour

Movement: X and Y and Z axis low friction bushing, X, Y is linear bearing. All welded electronics and built-in microSD card slot for independent printing. Enhanced set, improve the X and Y shaft assembly is convenient Ultra-low print noise, let you print more quiet!

Contain all parts for assembly .

1, 1 pack hardware fittings

2, 5 NEMA14 stepper motors

3, heating bed 1 set of components

4, extrusion units 1 set

5, RP plastic parts 1 bag(total 42 piece. 2 metal coupling)

6, power supplier 1

7, 1 piece motherboard

Besides, we will give you 100g ABS , a set of special little tools and 1m high temperature tap as gifts . Thanks .

We are from China, our aim is to make each 3 d printers lovers can use a printer, so our machine is much cheaper than others, but our quality is guaranteed, our brand is HE3D, you can find our buyers confirm every word I said above, thank you!http://www.reprap.cn/
